Cold Chain industry development
As more and more consumers prefer to buy fresh food via e-commerce platforms, it has driven the construction of cold chain facilities, especially logistics cold rooms, the medium and large cold room market has been growing rapidly. In recent years, the government attaches great importance to the cold chain logistics development, and has published documents such as the Opinions on Accelerating the Development of cold chain Logistics to Ensure Food Safety and Promote Consumption Upgrading, the Guiding Opinions on Actively Promoting Supply Chain Innovation and Application, the "14th Five-Year Plan" for the Development of Cold Chain Logistics, and launched agricultural products cold chain circulated standard exemplary city and enterprise pilot, evaluation and other activities. From the perspective of policies, regulations, industry standards and other aspects to promote the transformation and upgrading of the entire logistics industry, and provide a positive policy environment for the cold chain logistics development.

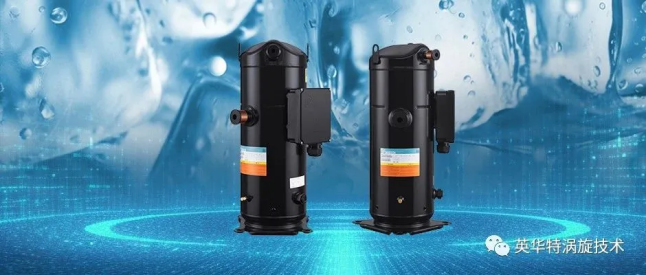

In order to meet the market demand for medium and large cold room compressors, Invotech has officially launched the YF-V series of big-displacement LBP freezing scroll compressors with EVI to the market in November 2023. Three new models were released this time: YF200E1G-V100, YF170E1G-V100, YF135E1G-V100, with 30HP, 25HP and 20HP respectively.
Adhering to the traditional technical advantages of Invotech scroll compressor, YF-V series products optimized and verified reliability for LBP freezing application, improve main line subcooling through the support of mature EVI technology and secondary condenser heat exchange, get greater enthalpy difference and provide more cooling capacity when evaporating in evaporator after throttle.
YF-V big displacement products-Feature
01、Based on the mature 246 cylinder diameter platform design, dual channel discharge check valve patent design, reduce the under compression loss under high pressure ratio conditions, improve energy efficiency; and take discharge port flow area and valve reliability into account.
02、with support of EVI technology, increase capacity 40% and efficiency 30% at LBP rated condition, achieve setting temperature rapidly.。
03、Scroll automatic oil supply technology, increase oil supply during low refrigerant mass flow condition, ensure lubrication and improve reliability.
04、External protection module, motor phase protection, phase sequence protection, overheat protection, ensure motor safe and operate normally in all conditions. With fault storage and warning functions to make it easier for failure analysis, and provide IP54 safety class protection for compressor, effective waterproof and dustproof to cope with outdoor environment.
05、Compact structure design reduces the weight and space occupied by the unit.
06、Discharge temperature control. With discharge temperature sensor, combined with EVI control board, effectively control the discharge temperature (60~110℃ can be set).
YF- big displacement products-Envelop
Invoteck YF-V series of big displacement with EVI, will certainly create a stable and reliable refrigeration system for customers in various application scenarios such as cold room and ice makers, and help the implementation of the national cold chain facility construction plan!
